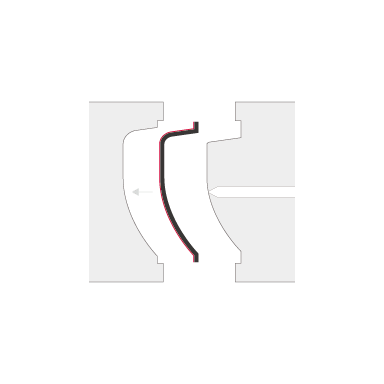

Preform the INS sheet and trim the unnecessary parts then insert into mold for molding.
Feature of our Film Insert Molding
This method is most suitable for decorating complex shapes with deep edge. The product is with stability and high durability technology. By this Film Insert Molding process, vivid designs and textures can be achieved. We are confident that we can provide you with the highest level of Film Insert Molding process production services.
The application of Film Insert Molding
The surface decoration produced by this technical method is often used in interior and exterior of automobiles and motorbikes, smart appliances. In the above-mentioned industries, we have many long-term partners, especially in the automotive interior industry and consumer electronics companies.

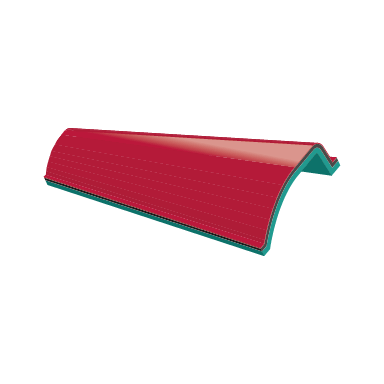

Glossy
Matte
INS is the abbreviation of INSer molding.

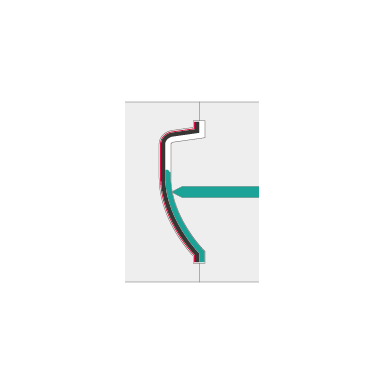

This technique thermoformed INS plastic sheet trimmed the sheet by the shape, then insert the formed sheet into mold cavity for injection.
Sentien provides the
printed INS sheet.
INS technique including forming, trimming and injection procedures which means above three corresponding equipment are required.
If you have any inquiry of equipment, please contact us.
For products with deep edge decoration,
such as automobile and motorcycle interior and exterior decorations,
appliances, luggage, electronic products, etc., are suitable for INS technique.
If you would like further discussion and evaluation, please send mail and we will provide professional suggestions.
We will evaluate the product according to
the corner angle, depth, and thickness.
If you are not sure whether it is
applicable, feel free to provide the drawings, and we will do the evaluation of
your product appearance.
INS film can be applied on ABS or PC+ABS.
The thickness of INS film is around 475-500 mm. Don’t forget to preserve the gap while tooling design.
Maximum width is 650mmif you have other
size requestion please contact us.
All those effect that can be used on
gravure printing can be reach on INS film, no matter light transmission, pearl,
or metallic ink.
Sentien has CMF team with great design
ability, but customer designed patterns are also welcome.
Price is based on size of the film area.
Feel free to send us your product size for quotation.
Films will be shipped in rolls, customer
can cut the length they need with resiliency.
No, INS doesn’t need post procedure after
injection.
